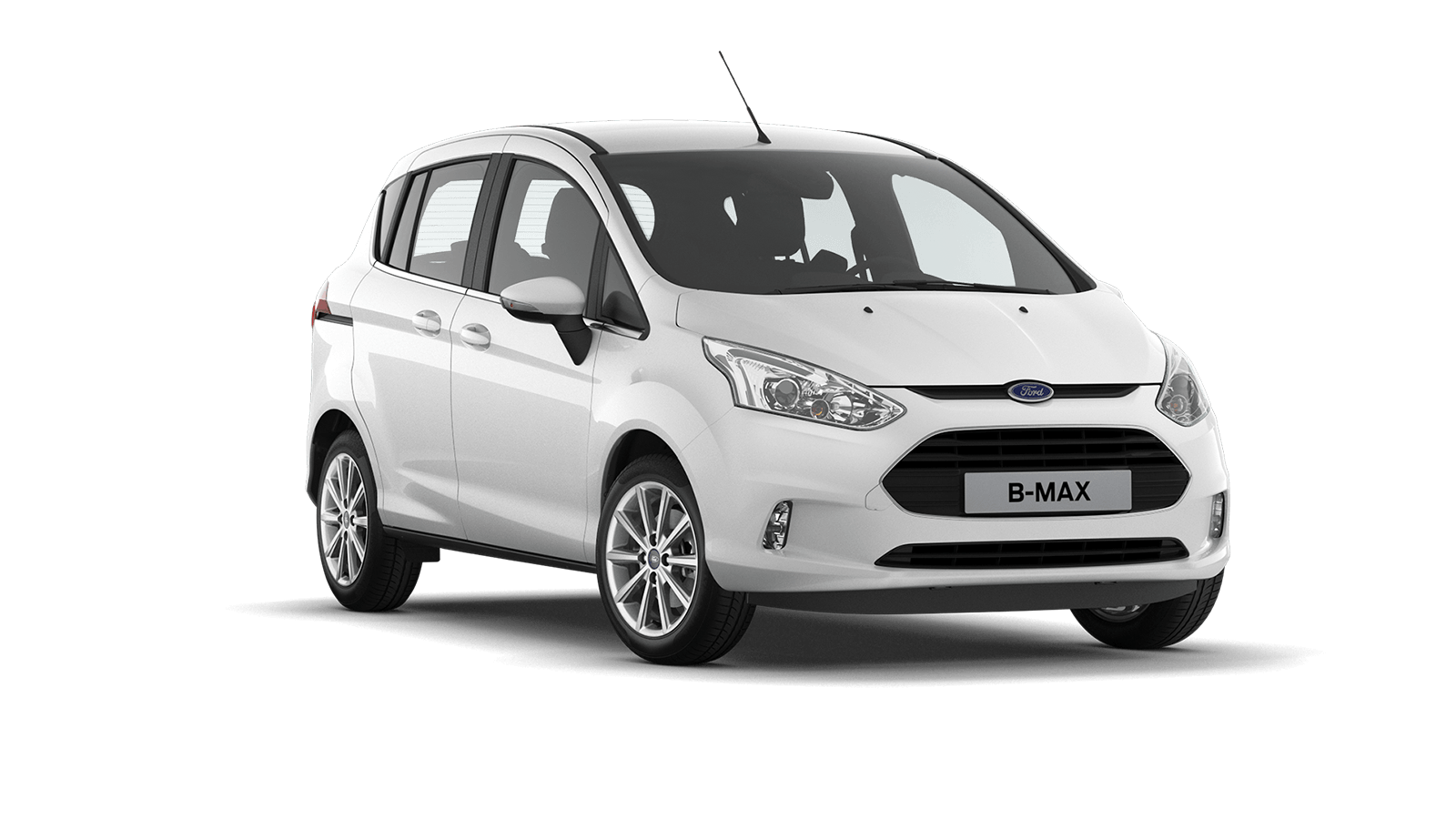

FORD B-MAX (JK)
Engine Malfunction Indicator Lamp (MIL) on. Difficulty starting engine. Loss of engine power. Battery discharged. Vehicle has the following fault code: P0380.

MODEL:
FORD B-MAX (JK)
VERSION:
1.6 TDCi (T3JB) 70 Kw 95 Hp 1560 Cm3
SYMPTOMS:
P0380 – Glow plugs, circuit A. Improper operation.
Engine failure lamp (MIL) on.
Fault code recorded in the engine control unit.
Difficulty when starting the engine.
Loss of engine power.
Discharged battery.
NOTE: In the workshop one or several of the above – mentioned symptoms are detected.
CAUSE/S:
Possible causes:
• Defect in one or several glow plugs.
• Internal defect in the preheating relay of the glow plugs because of water entry.
SOLUTION:
Repair procedure:
• Confirm that the fault code mentioned in the symptom field of this bulletin is recorded.
• Check the resistance between the glow plugs power supply pin in the glow plug and the cylinder head.
• Replace the glow plugs if their resistance measured is greater than 1 Ohm.
• Replace the relay of the glow plugs and a modified wiring harness if the glow plugs work properly.
NOTE: For your information, there is an additional installation kit to resolve the fault.

IMAGE 1:
A – Glow plug relay.

IMAGE 2:
A – Location of fuse box and motor compartment relays.

The information provided in this bulletin is only a recommendation of the procedures to be followed and it cannot replace at any time neither the diagnosis nor the professional judgement of the repairer. Grup Eina Digital Ltd. will not accept any liability for any possible damages caused directly or indirectly from the use of the information in this bulletin.
It is absolutely prohibited to distribute or sell this document without prior authorisation from the competent party.
Copyright c-2021 Grup Eina.
